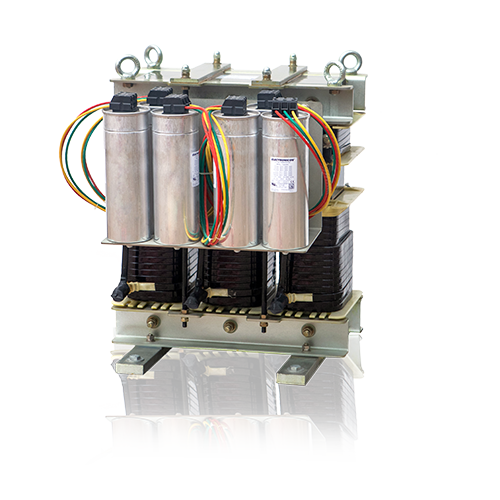

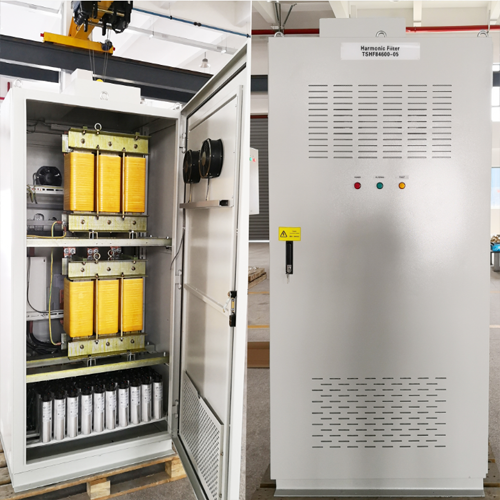

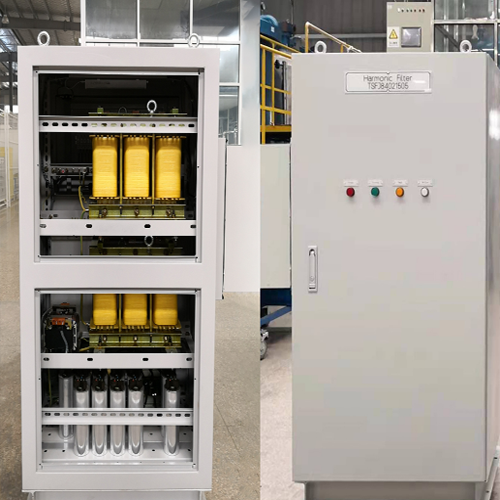

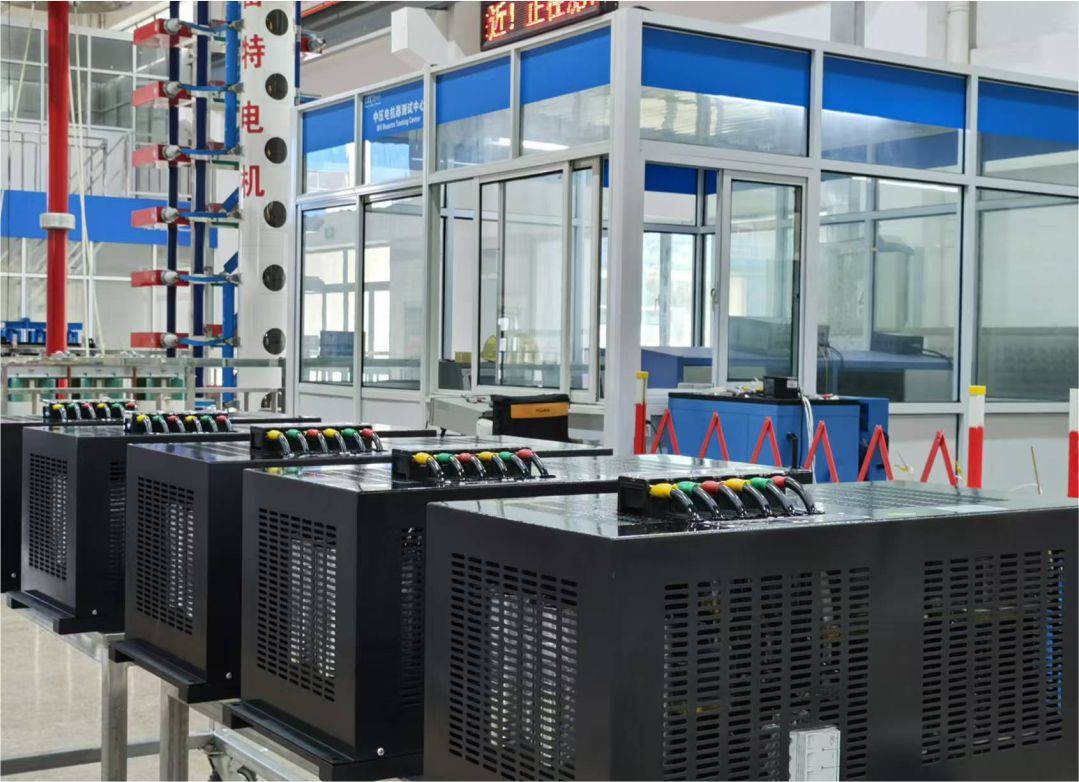

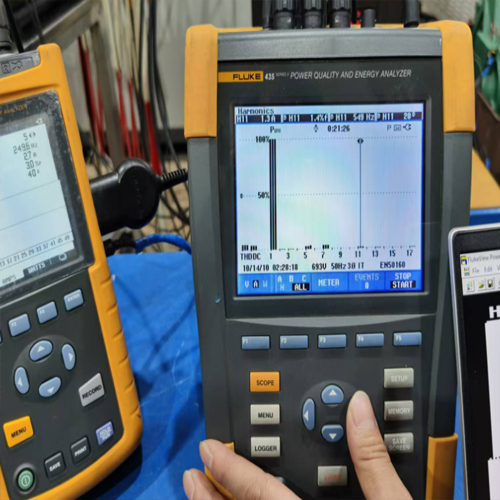

PHF is kind of low-pass harmonic filter to help improving harmonic currents, so that the total THDI and THDV can meet the limits of IEEE519,and the power factor can reach above 0.95 at 100% loading. There is no resonance between PHF and system power. The input capacity can be switching in different groups according to the load request, to avoid the over compensation and under compensation of power factor.
In compliance with:IEEE-519, EN61558-2-20,EN60076-6
Approval marks:
Rated voltage: 220V-690V
Rated frequency: 50Hz/60Hz
Voltage unbalance distortion rate: ＜1%
Total harmonic current distortion : According to IEEE519
Total voltage distortion limits: Special application (hospitals、airports） 3%,
General system applications 5%
Line voltage tolerance: +/-10%
System impedance: 1.5%-6%
Dielectric test: 50Hz 3KV,60s
Cooling method: Natural air
Ambient temperature: -40 to +50℃
Elevation above sea level: ≤1000m a.s.l.(≤4000m optional)
Protection class: IP00( IP20 to IP54 optional)
THDI Target value: 5%, 8%,12% at 100% load
Efficiency: >95%
Insulation class: H(UL approved resin and capacitor)
Overload capability: 1.5 times rated current for 1 minute
Design method : Three phase, dry type iron core, multiple air gap
Winding material : Copper/Aluminum
Terminals : Copper terminals or busbars
