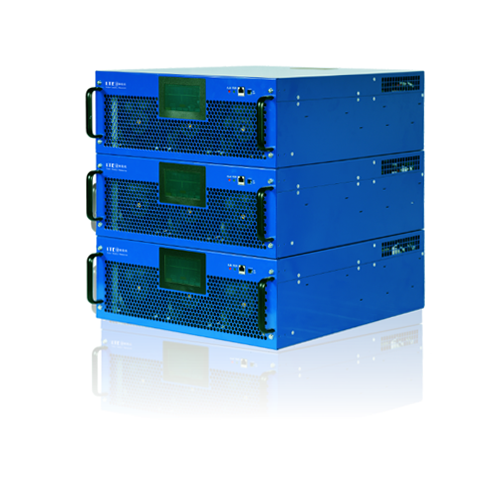

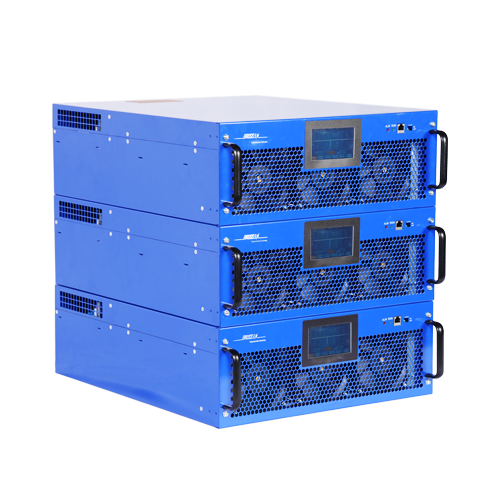

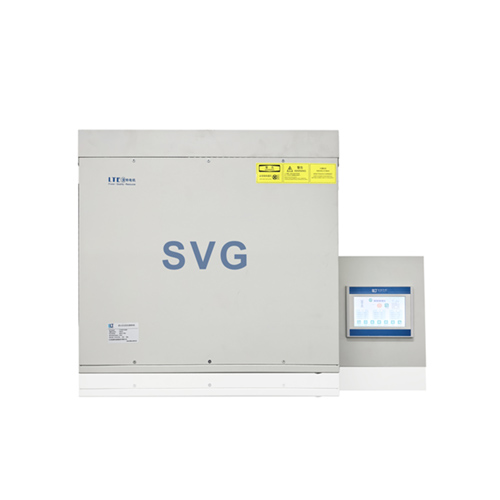

LOFUTEC SVG products are the ideal solution to simultaneously solve low reactive power and low harmonic current pollution. They can dynamically compensate for inductive or capacitive power with very fast response times to achieve a target power factor of 0.99 and avoid any over- or under-compensation.
Compliance certification: IEC62477, IEEE519
Working voltage: 400V/690V
Frequency: 50Hz/60Hz
Grid structure: three-phase three-wire, three-phase four-wire
Filter range: 2~50 times
Efficiency: >98%
Cooling method: forced air cooling
Altitude: ≤5000m a.s.l.
Maximum humidity: 90%
Protection level: IP20 indoor installation (higher protection level can be customized)
